【React Native】一、原生UI组件

前言

React Native封装了大部分最常见的组件，但有时我们需要一些特殊的组件是React Native没有提供的。该文章将细说如何在React Naitve应用程序中封装和植入已有的原生UI组件。

步骤

创建一个ViewManager的子类
实现createViewInstance方法
导出视图的属性设置器：使用@ReactProp（或@ReactPropGroup）注解
把这个视图管理类注册到应用程序包的createViewManagers里
实现JavaScript模块

具体代码实现

我们将自定义一个可以显示圆形、圆角矩形和椭圆形图片的ImageView组件

在Android中自定义该控件

public class RoundImageView extends ImageView {

    private Paint mPaint;
    private int mWidth;
    private int mRadius;
    private RectF mRect;
    private int mRoundRadius;
    private BitmapShader mBitmapShader;
    private Matrix mMatrix;
    private int mType = 1;

    public static final int TYPE_CIRCLE = 1;
    public static final int TYPE_ROUND_RECTANGLE = 2;
    public static final int TYPE_OVAL = 3;
    public static final int DEFAUT_RADIUS = 5;

    public RoundImageView(Context context) {
        this(context, null);
    }

    public RoundImageView(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public RoundImageView(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        initView();
    }

    private void initView() {
        mPaint = new Paint();
        mPaint.setAntiAlias(true);
        mMatrix = new Matrix();
        mRoundRadius = DEFAUT_RADIUS;
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        if (mType == TYPE_CIRCLE) {
            mWidth = Math.min(getMeasuredWidth(), getMeasuredHeight());
            mRadius = mWidth / 2;
            setMeasuredDimension(mWidth, mWidth);
        }

    }

    @Override
    protected void onDraw(Canvas canvas) {
        if (null == getDrawable()) {
            return;
        }
        initBitmapShaderByType();
        switch (mType) {
            case TYPE_CIRCLE:
                canvas.drawCircle(mRadius, mRadius, mRadius, mPaint);
                break;
            case TYPE_ROUND_RECTANGLE:
                mPaint.setColor(Color.RED);
                canvas.drawRoundRect(mRect, mRoundRadius, mRoundRadius, mPaint);
                break;
            case TYPE_OVAL:
                canvas.drawOval(mRect, mPaint);
                break;
        }
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        mRect = new RectF(0, 0, getWidth(), getHeight());
    }

    private void initBitmapShaderByType() {
        Drawable drawable = getDrawable();
        if (null == drawable) {
            return;
        }
        Bitmap bitmap = drawableToBitmap(drawable);
        mBitmapShader = new BitmapShader(bitmap, Shader.TileMode.CLAMP, Shader.TileMode.CLAMP);
        float scale = 1.0f;
        switch (mType) {
            case TYPE_CIRCLE:
                int bSize = Math.min(bitmap.getWidth(), bitmap.getHeight());
                scale = mWidth * 1.0f / bSize;
                break;
            case TYPE_ROUND_RECTANGLE:
            case TYPE_OVAL:
                scale = Math.max(getWidth() * 1.0f / bitmap.getWidth(), getHeight() * 1.0f / bitmap.getHeight());
                break;
        }
        mMatrix.setScale(scale, scale);
        mBitmapShader.setLocalMatrix(mMatrix);
        mPaint.setShader(mBitmapShader);
    }

    public void setImageName(String name) {
        this.setImageResource(getResourceId(name));
    }

    public void setType(String typeStr) {
        int type = 1;
        switch (typeStr) {
            case "circle":
                type = 1;
                break;
            case "round":
                type = 2;
                break;
            case "oval":
                type = 3;
                break;
        }
        if (this.mType != type) {
            this.mType = type;
            invalidate();
        }
    }

    public void setRoundRadius(int mRoundRadius) {
        if (this.mRoundRadius != mRoundRadius) {
            this.mRoundRadius = mRoundRadius;
            invalidate();
        }
    }

    private Bitmap drawableToBitmap(Drawable drawable) {
        if (drawable instanceof BitmapDrawable) {
            BitmapDrawable bitmapDrawable = (BitmapDrawable) drawable;
            return bitmapDrawable.getBitmap();
        }
        int w = drawable.getIntrinsicWidth();
        int h = drawable.getIntrinsicHeight();
        Bitmap bitmap = Bitmap.createBitmap(w, h, Bitmap.Config.ARGB_8888);
        Canvas canvas = new Canvas(bitmap);
        drawable.setBounds(0, 0, w, h);
        drawable.draw(canvas);
        return bitmap;
    }

    private int getResourceId(String imageName) {
        int resId = getResources().getIdentifier(imageName, "mipmap", getContext().getPackageName());
        if (resId == 0) {
            resId = getResources().getIdentifier(imageName, "drawable", getContext().getPackageName());
        }
        return resId;
    }
}

在上述的RoundImageView中对外提供了三个公共方法，用于后续js设置属性使用：

setImageName(String name)
setType(String typeStr)
setRoundRadius(int mRoundRadius)

创建ViewManager子类，实现方法createViewInstance，通过@ReactProp（或@ReactPropGroup）注解来导出属性的设置方法

public class RoundImageViewManager extends SimpleViewManager<RoundImageView> {

    public static final String COMPONENT_NAME = "RoundImageView";

    @Override
    public String getName() {
        return COMPONENT_NAME;
    }

    @Override
    protected RoundImageView createViewInstance(ThemedReactContext reactContext) {
        return new RoundImageView(reactContext);
    }

    @ReactProp(name = "name")
    public void setPath(RoundImageView view, String name) {
        view.setImageName(name);
    }

    /**
     * 设置图片类型：圆形、圆角矩形、椭圆形
     *
     * @param mType
     */
    @ReactProp(name = "type")
    public void setType(RoundImageView view, String mType) {
        view.setType(mType);
    }

    /**
     * 设置圆角大小
     *
     * @parammRoundRadius
     */
    @ReactProp(name = "roundradius")
    public void setRoundRadius(RoundImageView view, int mRoundRadius) {
        view.setRoundRadius(mRoundRadius);
    }
}

注册ViewManager，然后在Application的mReactNativeHost中返回RoundImageViewReactPackage

public class RoundImageViewReactPackage implements ReactPackage {

    @Override
    public List<NativeModule> createNativeModules(ReactApplicationContext reactContext) {
        return Collections.emptyList();
    }

    @Override
    public List<ViewManager> createViewManagers(ReactApplicationContext reactContext) {
        return Arrays.<ViewManager>asList(new RoundImageViewManager());
    }
}

private final ReactNativeHost mReactNativeHost = new ReactNativeHost(this) {
    @Override
    public boolean getUseDeveloperSupport() {
        return BuildConfig.DEBUG;
    }

    @Override
    protected List<ReactPackage> getPackages() {
        return Arrays.<ReactPackage>asList(
                new MainReactPackage(),
                new RoundImageViewReactPackage()
        );
    }

    @Override
    protected String getJSMainModuleName() {
        return "index";
    }
};

实现对应的JavaScript模块

import { PropTypes } from 'prop-types';
import { requireNativeComponent, View } from 'react-native';

const RoundImageView = requireNativeComponent('RoundImageView', {
  propTypes: {
    name: PropTypes.string,
	type: PropTypes.oneOf(['circle', 'round', 'oval']),
	roundradius: PropTypes.number,
    ...View.propTypes // 包含默认的View的属性
  },
});

export default RoundImageView;

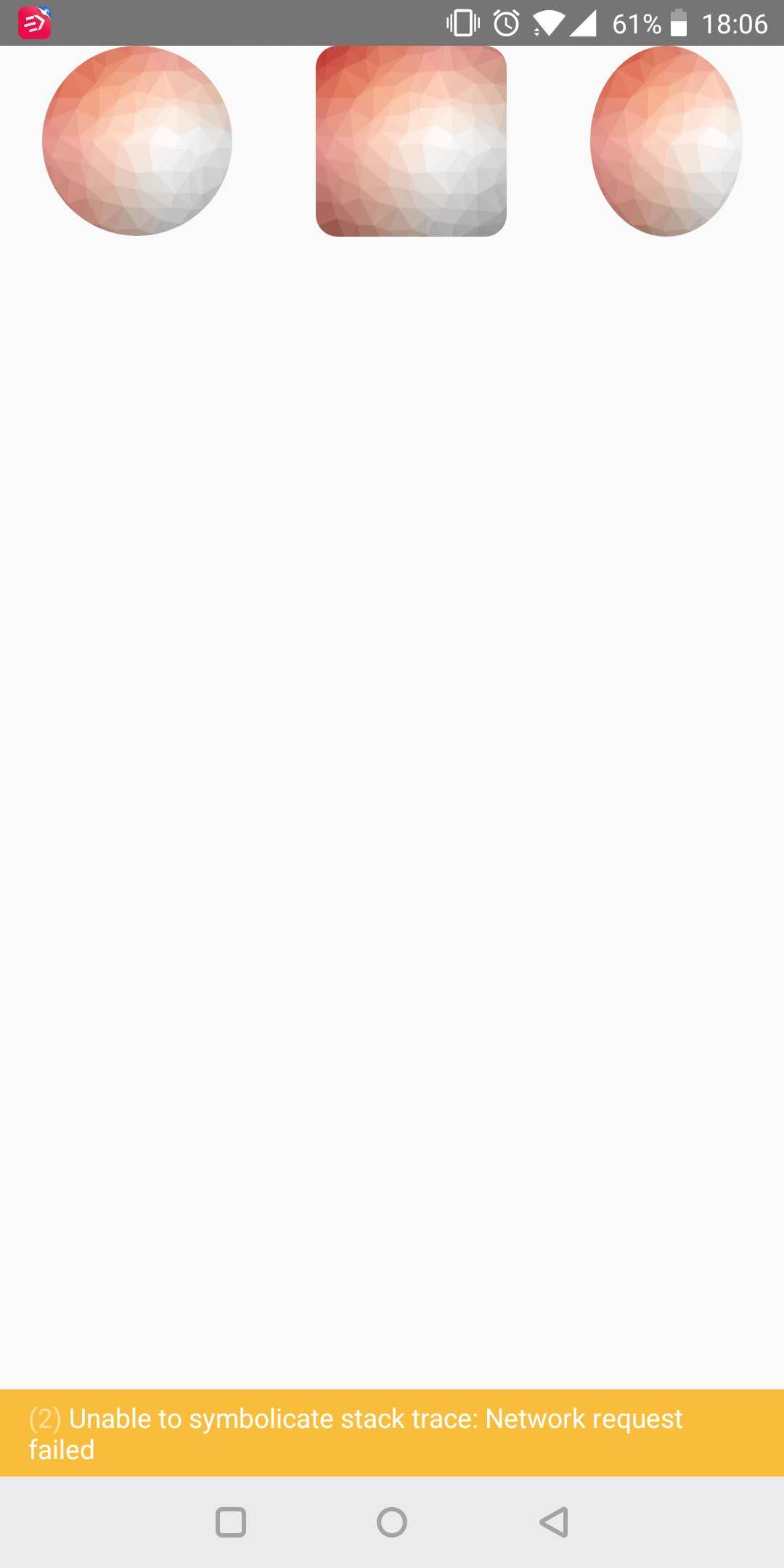

在js中使用该组件

import React, { Component } from 'react';
import { Text, View, StyleSheet } from 'react-native';
import RoundImageView from './RoundImageView';

export default class RoundImageViewTest extends Component {
  render() {
    return (
      <View style={styles.container}>
        <RoundImageView style={{width: 100, height: 100}} name="icon_rectangle" type="circle" />
		<RoundImageView style={{width: 100, height: 100}} name="icon_rectangle" type="round" roundradius={30} />
		<RoundImageView style={{width: 80, height: 100}} name="icon_rectangle" type="oval" roundradius={45} />
      </View>
    );
  }
}

const styles = StyleSheet.create({
  container: {
        flex: 1,
        flexDirection: 'row',
        justifyContent: 'space-around',
  },
});
